COP-FLEX 2000® - Class I

NON-CLOTH: LIST II ZERO-HALOGEN

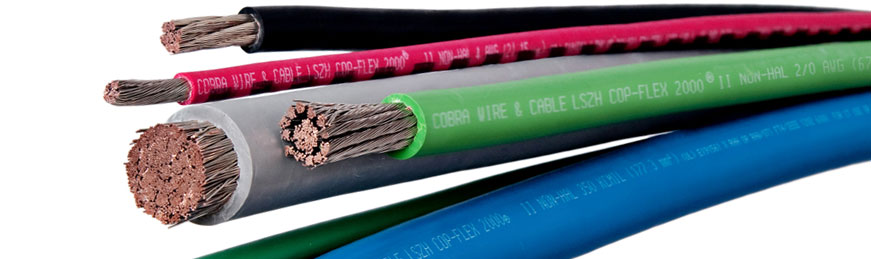

Cop-Flex Image



DESCRIPTION

This single conductor 600/1000V RHH/RHW/LS non-halogenated cable with stranded tinned copper has an extruded insulation consisting of a crosslinked polyolefin compound. It is intended for use in telephone central office systems and other general wiring applications. Also ideal for people-intensive or critical equipment areas where low smoke, halogen free insulation systems are highly desirable. May be installed in conduit, duct, raceways, aerial, or direct burial.


WARNING: California Proposition 65 - Cancer and Reproductive Harm
www.P65Warnings.ca.gov

STRANDING

Annealed Class I tinned copper strand

STANDARD

RHH/RHW per UL44. ASTM B-33 (Tinned Conductors) ASTM B-172 (Rope Lay stranded conductors). Telcordia (Bellcore) GR-347-CORE. UL 1685 LS (Limited Smoke). Rating per FT-4/IEEE1202. CSA FT-1 per C22.2 No.210.1. Oil resistant II per UL-44. Sunlight resistant for CT use 1/0 and larger. Rated 105°C AWM per UL subject 758 (style 3578/3237).

INSULATION

Crosslinked polyolefin base compound optimized for superior electrical properties. Specifically formulated to provide rugged, self-lubricating outer covering delivering superior performance, with the additional benefits of low-smoke and halogen free materials.

VOLTAGE

600/1000 Volts

TEMPERATURE

Rated 90°C dry, 75°C wet

Cobra Part
Number
Size *Stranding Tinned
Copper Class I
Insulation
Thickness
Nominal O.D. Ampacity Cable Weight
AWG Mils In A* B* LBs/MFT
CPI014T 14 41 X 30^ 0.045 0.171 25 35 25
CPI012T 12 65 X 30^ 0.045 0.190 30 40 34
CPI010T 10 105 X 30^ 0.045 0.215 40 55 49
CPI08T 8 41 X 24 0.060 0.276 55 80 79
CPI06T 6 65 X 24 0.060 0.329 75 105 117
CPI04T 4 105 X 24 0.060 0.389 95 140 175
CPI02T 2 168 X 24 0.060 0.452 130 190 253
CPI10T 1/0 266 X 24 0.080 0.578 170 260 423
CPI20T 2/0 342 X 24 0.080 0.628 195 300 538
CPI40T 4/0 532 X 24 0.080 0.743 260 405 790
CPI350T 350 MCM 888 X 24 0.095 0.946 350 570 1,302
CPI500T 500 MCM 1221 X 24 0.095 1.091 430 700 1,831
CPI750T 750 MCM 1850 X 24 0.110 1.329 535 885 2,752
Ampacities are based on the following:
*Condition A- Ampacities of not more than three 90°C rated single insulated conductors, rated 0 through 2000 volts, in raceway in free air, based on ambient air temperature of 30°C (86°F). Per Nec Table 310-16.
*Condition B- Ampacities of single 90°C rated insulated conductor, rated 0 through 2000 volts, in free air, based on ambient air temperature of 30°C (86°F). Per Nec Table 310-17.
Stranding:
There are multiple strand counts that can be used to meet applicable standards. Depending on strand availability and lead time strand counts may vary slightly.
^Class K stranding

Need Lugs? Click here to see lugs for Cop-Flex 2000®

Print Legend
COBRA WIRE & CABLE LSZH COP-FLEX 2000 I NON HAL AWG SIZE (UL) E NUMBER RHH OR RHW-ST1 FT4 600V OR AWM 3578 OR 3237 1000V LL NUMBER CSA AWM IB 105°C FT4 600 RoHS (SIZES OVER 1/0 INCLUDE "FOR CT USE")


UL Listed CSA CSA
