| COP-FLEX 2000® | ||||||||||
 |
||||||||||
| Cobra P/N | Size | Stranding Bare Copper |
Insulation Thickness | Nominal Cable O.D. | Ampacity | Nominal Cable WT. (Lbs/Mft) | ||||
| AWG | MM2 | Mils | MM | in. | MM | Condition A (75°C) |
Condition B (90°C) |
|||
| CPB06B | 6 | 13.20 | 7 | 60 | 1.52 | 0.329 | 8.36 | 65 | 75 | 116 |
| CPB04B | 4 | 21.15 | 7 | 60 | 1.52 | 0.389 | 9.88 | 85 | 95 | 171 |
| CPB02B | 2 | 33.61 | 7 | 60 | 1.52 | 0.452 | 11.48 | 115 | 130 | 256 |
| CPB10B | 1/0 | 53.50 | 19 | 80 | 2.03 | 0.578 | 14.68 | 150 | 170 | 410 |
| CPB20B | 2/0 | 67.40 | 19 | 80 | 2.03 | 0.628 | 14.68 | 175 | 195 | 505 |
| CPB40B | 4/0 | 107.0 | 19 | 80 | 2.03 | 0.743 | 18.87 | 230 | 260 | 767 |
| CPB350B | 350 MCM | 177.0 | 37 | 95 | 2.41 | 0.946 | 24.02 | 310 | 350 | 1243 |
| CPB500B | 500 MCM | 253.0 | 37 | 95 | 2.41 | 1.091 | 27.86 | 380 | 430 | 1735 |
| CPB750B | 750 MCM | 380.0 | 61 | 110 | 2.79 | 1.326 | 33.68 | 475 | 535 | 2583 |
| Download | ||||||||||
| Buying Guide |
| Cobra just made it easier to order the correct material to get the job done. Download here. |
| Ampacities are based on the following: | |
| Condition A - Ampacities are based on three (3) insulated single conductors installed in a raceway or direct burial, 75°C conductor temperature in wet locations (RHW Rating); 30°C ambient earth temperature (per NEC 310-16). |
Condition B - Ampacities are based on three (3) insulated single conductors installed in a raceway or direct burial, 90°C conductor temperature in dry locations (RHH Rating); 30°C ambient earth temperature (per NEC 310-16).
|
|
Description |

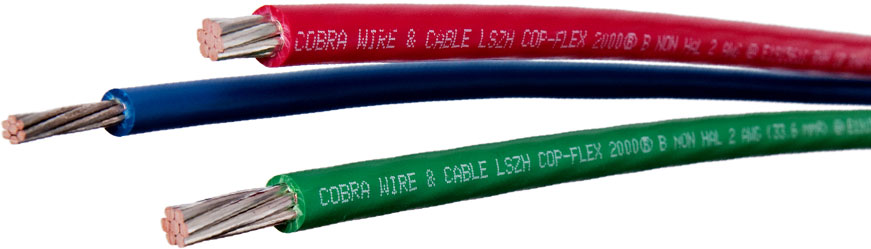

| Type RHH/RHW/LS Non-Halogenated, Class B Stranding Copper Conductor, 600/1000 Volts, Low Smoke, Halogen Free, Cross Linked, Thermoset Compound, Flame Retardant, UL Listed and CSA Certified. |
| Approvals |
|
UL Approvals UL Standards 44 (RHH - RHW) Rated 90°C dry and 75°C for wet locations. UL 1685 LS (Limited Smoke) Rating UL Rated 105°C AWM per Subject 758 (Style 3578/3237) UL Sunlight Resistance for CT use; Oil Resistance II per UL 44 UL Listed ZMHX as Miscellaneous wire for use as Telephone Central Office Power Cable. 105°C dry and 75°C for wet locations. CSA C22.2 No. 38 (RW90) Rated 90°C dry and 75°C for wet locations. CSA FT-4 CSA FT-1 per C22.2 No. 210.2 Telcordia TR-NWT-000347. Issue 1. GR-347-CORE. Issue 1. 11/96 IEEE 1202 Flame Test |
| Applications |
| Cop-Flex 2000® can be used in many applications, in several varied industries. Have a special application? Give us a call or send an e-mail, we're always here to assist you. |
 |
|||
|
