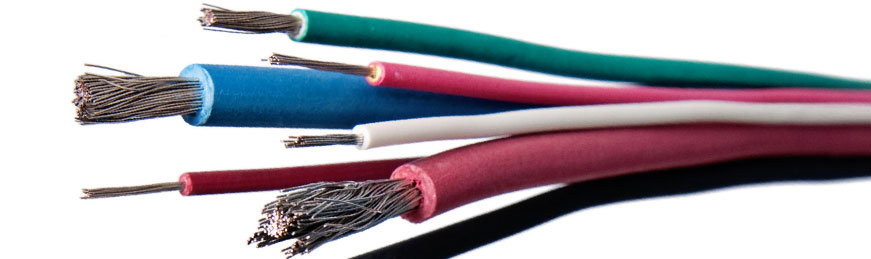

Chemically Cross-Linked Polyethylene (XLP)™

Extra Flexible Compound 600V

Part
Number
Size
Stranding
Insulation
Nominal OD
UL Style
CSA
AMPS*
Weight
AWG
MM2
IN
MM
IN
MM
LBs/MFT
KGs/Meter
MX2010 20 .50 10/30 .030 0.76 .102 2.59 3321 CL1503 22 7 0.010
MX1815 18 .75 16/30 .030 0.76 .111 2.82 3321 CL1503 28 9 0.014
MX1615 16 1.5 26/30 .030 0.76 .124 3.15 3321 CL1503 36 13 0.019
MX1415 14 2.5 41/30 .030 0.76 .139 3.53 3321 CL1503 46 19 0.028
MX1265 12 4 65/30 .030 0.76 .163 4.14 3321 CL1503 60 28 0.041
MX1015 10 6 105/30 .030 0.76 .190 4.83 3321 CL1503 80 42 0.062
MX8133 8 10 7 X 19/29 .045 1.14 .266 6.76 3321 CL1503 106 72 0.106

*At 40°C for a single conductor in free air per NEC, Table 310-19, 1999

For sizes larger than 8 Awg, please check out our X-Flex 150®

Description

XLPE is a thermosetting high temperature insulating material that provides a wide variety of desirable properties, including chemical resistance, high dielectric strength and good thermal aging. It is solvent and abrasion resistant, good strippability, excellent smooth appearance and sharp distinct colors. It also resists deformation when subject to momentary high temperature in assembly operations.

Features

  • -30°C to 150°C
  • Tinned Copper Conductor
  • UL Recognized UL AWM Style 3321
  • CSA Certified CL1503
  • Halogen Free

Application

Appliance Wiring • Motors • Coil Lead • Transformers • UPS • Ballasts • Gas Heating • Cooking Equipment

Suitable for appliance wiring material, transformer leads, lighting, ballasts, motors, electrical heating, gas heating, cooking equipment and hairdressing equipment

Economical replacement for silicone insulated wire.

In applications where exposed to gasoline vapors up to +75°C or immersed in gasoline up to 30°C.

UL Recognized CSA RoHS Compliant
Style 3321
AWM		 CSA Certified CL1503
